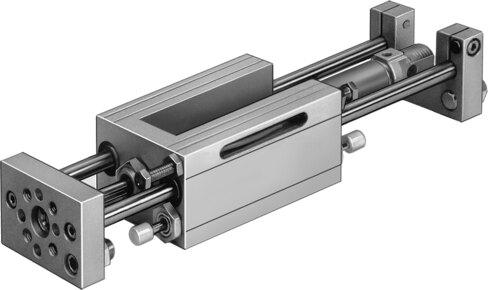

Reference imageConfirm configuration by manufacturer part number.
Festo
150088
Linear unit SLE-10- -KF-A
The Festo 150088 is a double-acting industrial drive unit featuring a 10 mm piston diameter, a yoke operating mode, and a stroke length ranging from 10 mm to 100 mm with recirculating ball bearing guidance. Operating at pressures between 2.5 bar and 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], this component incorporates pneumatic shock absorber cushioning with a hard characteristic curve and allows position sensing via proximity switches or inductive sensors. It delivers a theoretical force of 40 N retracting and 47 N advancing at 6 bar while functioning within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150088
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150088.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...100 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Moving mass at 0 mm stroke
- 160 g
- Additional moving mass per 10 mm stroke
- 8 g
- Basic weight with 0 mm stroke
- 560 g
- Additional weight per 10 mm stroke
- 10 g
- Pneumatic connection
- M5
- Cover material
- Aluminum
- Seals material
- PA
- Housing material
- Aluminum
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150088. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
