Festo
150091

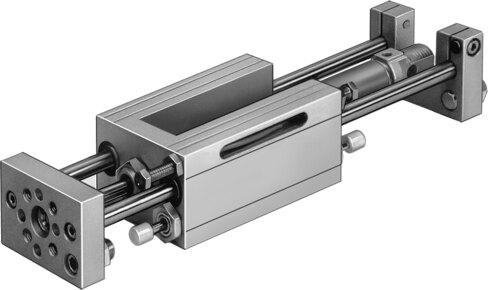

Linear unit SLE-20- -KF-A
The Festo part number 150091 is a double-acting industrial drive unit featuring a 20 mm piston diameter, a yoke operating mode, and a stroke length ranging from 10 mm to 320 mm with a recirculating ball bearing guide. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 2.5 bar to 10 bar pressure range, this component delivers a theoretical force of 188 N advancing and 158 N retracting at 6 bar. It incorporates pneumatic shock absorber cushioning with a hard characteristic curve, position sensing via proximity switch or for inductive sensors, and functions in ambient temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150091
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150091.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...320 mm
- Piston diameter
- 20 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 158 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 500 g
- Additional moving mass per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 1882 g
- Additional weight per 10 mm stroke
- 19 g
- Pneumatic connection
- G1/8
- Cover material
- Wrought aluminum alloy
- Seals material
- PA
- Housing material
- Aluminum
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150091. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
