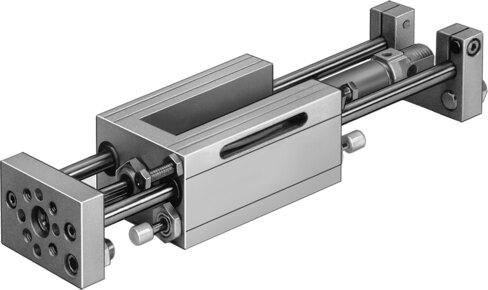

Reference imageConfirm configuration by manufacturer part number.
Festo
150093
Linear unit SLE-32- -KF-A
Engineered with a 32 mm piston diameter and a stroke range of 10 mm to 500 mm, the Festo 150093 double-acting industrial component features a yoke drive unit and a recirculating ball bearing guide. This unit operates between 0.15 MPa and 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical advancing force of 483 N and a retracting force of 415 N at 6 bar. Position sensing is accomplished via proximity switch or inductive sensors, while kinetic energy is managed by a pneumatic shock absorber with a hard characteristic curve. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150093
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150093.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...500 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch | For inductive sensors
- Operating pressure
- 0.15 MPa...1.2 MPa | 1.5 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass at 0 mm stroke
- 1500 g
- Additional moving mass per 10 mm stroke
- 31 g
- Basic weight with 0 mm stroke
- 4300 g
- Additional weight per 10 mm stroke
- 57 g
- Pneumatic connection
- G1/8
- Cover material
- Cast aluminum
- Seals material
- PA
- Housing material
- Cast aluminum
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy
