Festo
150292

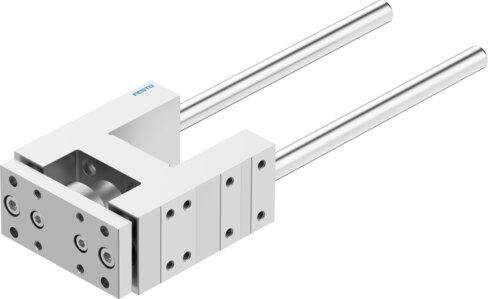

Guide unit FENG-50-400-KF
The Festo 150292 is an industrial guide featuring a size 50 designation, a 400 mm stroke, and a recirculating ball bearing guide supporting any mounting position. It accommodates a maximum dynamic force of 1260 N for both Fy and Fz, a maximum static force of 1600 N, and maximum moments reaching 83 Nm for Mx and 89 Nm for My and Mz. Weighing 5990 g with a displacement force of 15 N, this component operates within an ambient temperature range of -20 °C to 80 °C while meeting VDMA24364-B2-L LABS conformity and adhering to certified explosion prevention guidelines. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150292
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150292.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 400 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Product weight
- 5990 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150292. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
