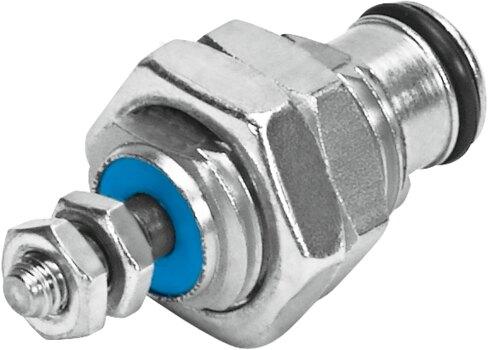

Reference imageConfirm configuration by manufacturer part number.
Festo
15033
Cartridge cylinder EGZ-6-5
Engineered with a 5 mm stroke and a 6 mm piston diameter, this Festo single-acting pushing pneumatic component operates between 2 bar and 8 bar using compressed air conforming to ISO 8573-1:2010 [7:-:-]. The structural design features a piston, piston rod at one end, and a cylinder barrel with a POM cover, achieving a theoretical force of 14 N at 6 bar and 14.7 N when advancing. It offers universal mounting flexibility via external thread or locknut, an M3 pneumatic connection, and a moderate corrosion resistance class (CRC 2) suitable for ambient temperatures ranging from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15033
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15033.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- None
- Variants
- Piston rod at one end
- Operating pressure
- 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Tightening torque of drive fastening
- 8 Nm
- Theoretical force at 6 bar
- 14 N
- Theoretical force at 6 bar, advancing
- 14.7 N
- Type of mounting
- Alternatively: | With external thread | With locknut
- Pneumatic connection
- M3
- Cover material
- POM
- Seals material
- TPE-U(PU)
- Housing material
- Brass | Nickel-plated
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15033. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
