Festo
15034

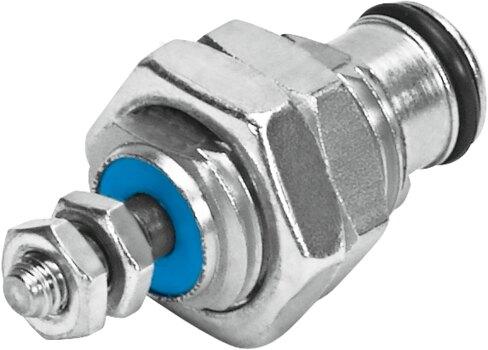

Cartridge cylinder EGZ-6-10
The Festo 15034 is a single-acting industrial component featuring a 6 mm piston diameter, a 10 mm stroke, and a piston rod at one end operating in a pushing mode. It functions with compressed air conforming to ISO 8573-1:2010 [7:-:-] at an operating pressure ranging from 2 bar to 8 bar, delivering a theoretical advancing force of 13.9 N at 6 bar. Constructed with a POM cover and offering moderate corrosion resistance (CRC 2), the unit includes an M3 pneumatic connection, no position sensing, and no cushioning while supporting any mounting position through an external thread or locknut. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15034
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15034.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- None
- Variants
- Piston rod at one end
- Operating pressure
- 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Tightening torque of drive fastening
- 8 Nm
- Theoretical force at 6 bar
- 14 N
- Theoretical force at 6 bar, advancing
- 13.9 N
- Type of mounting
- Alternatively: | With external thread | With locknut
- Pneumatic connection
- M3
- Cover material
- POM
- Seals material
- TPE-U(PU)
- Housing material
- Brass | Nickel-plated
- Piston rod material
- High-alloy steel
