Festo
150385

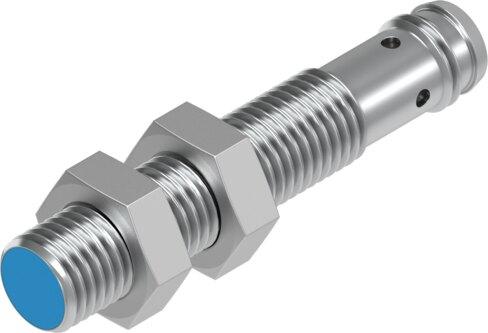

Proximity sensor SIEN-M8B-NS-S-L
The Festo 150385 industrial component is an inductive proximity sensor featuring a rated operating distance of 1.5 mm, an assured operating distance of 1.21 mm, and a repetition accuracy of 0.07 mm under constant conditions. Built with an NPN switching output, an N.O. contact switching element function, and a maximum switching frequency of 5000 Hz, this unit operates within a DC voltage range of 10 V to 30 V while supporting a maximum output current of 200 mA and a voltage drop of 2 V. It conforms to EN 60947-5-2 standards, carries c UL us - Listed (OL) and RCM certifications, includes CE and UKCA markings for EMC and RoHS directives, and features integrated short-circuit and inductive protective circuits for an ambient temperature range of -25 °C to 70 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150385
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150385.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Note on materials
- RoHS compliant
- Rated operating distance
- 1.5 mm
- Assured operating distance
- 1.21 mm
- Reduction factors
- Aluminum = 0.25 | Stainless steel St 18/8 = 0.7 | Copper = 0.2 | Brass = 0.35 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy under constant conditions
- 0.07 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Hysteresis
- 0.07 mm
- Max. switching frequency
- 5000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- ±10 %
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock
