Festo
150393

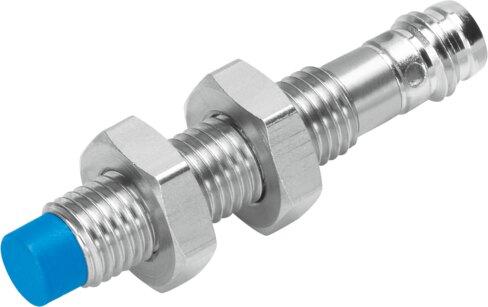

Proximity sensor SIEN-M8NB-NS-S-L
The Festo 150393 industrial component operates on a 10 V to 30 V DC range with an NPN switching output, N.O. contact, and a max switching frequency of 3000 Hz. It features a 2.5 mm rated operating distance, 2.03 mm assured operating distance, 0.12 mm repetition accuracy, and built-in pulsed short-circuit protection. Certified with RCM compliance, c UL us listing, CE marking for EMC and RoHS, and UKCA compliance, this unit functions within an ambient temperature range of -25 °C to 70 °C and conforms to EN 60947-5-2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150393
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150393.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Rated operating distance
- 2.5 mm
- Assured operating distance
- 2.03 mm
- Reduction factors
- Aluminum = 0.25 | Stainless steel St 18/8 = 0.7 | Copper = 0.2 | Brass = 0.35 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy under constant conditions
- 0.12 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Hysteresis
- 0.12 mm
- Max. switching frequency
- 3000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- ±10 %
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150393. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
