Festo
150394

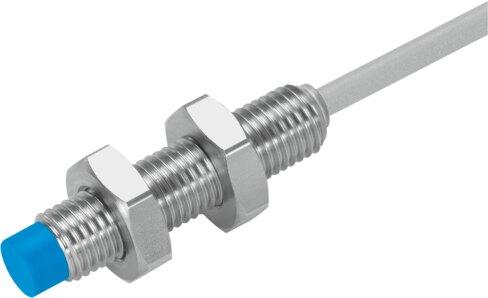

Proximity sensor SIEN-M8NB-PS-K-L
The Festo 150394 industrial component is an inductive sensor featuring a 2.5 mm rated operating distance, a 2.03 mm assured operating distance, and a PNP switching output with a N.O. contact switching element function. It operates on a DC voltage range of 10 V to 30 V, supports a maximum switching frequency of 3000 Hz at a 200 mA max output current, and functions within an ambient temperature range of -25 °C to 70 °C. Conforming to standard EN 60947-5-2, this unit includes a pulsed short-circuit protection, an installed inductive protective circuit, and bears RCM, c UL us - Listed (OL), CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150394
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150394.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Rated operating distance
- 2.5 mm
- Assured operating distance
- 2.03 mm
- Reduction factors
- Aluminum = 0.25 | Stainless steel St 18/8 = 0.7 | Copper = 0.2 | Brass = 0.35 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy under constant conditions
- 0.12 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Hysteresis
- 0.12 mm
- Max. switching frequency
- 3000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- ±10 %
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150394. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
