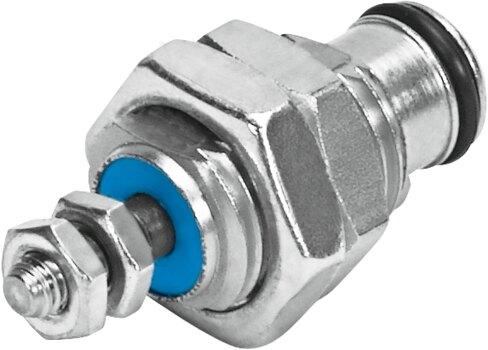

Name: Festo 15040 Cartridge cylinder EGZ-16-10
Brand: Festo

Cartridge cylinder EGZ-16-10

The Festo 15040 is a single-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a piston rod at one end operating via push mode. This un-cushioned unit operates on compressed air matching ISO 8573-1:2010 [7:-:-] within a 2 bar to 8 bar pressure range, delivering a theoretical advancing force of 109 N at 6 bar. Constructed with a POM cover and boasting a CRC 2 moderate corrosion resistance rating, the cylinder supports any mounting position via external thread or locknut with an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 15040
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 15040.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 16 mm
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Pushing | Single-acting
Structural design: Piston | Piston rod | Cylinder barrel
Position sensing: None
Variants: Piston rod at one end
Operating pressure: 2 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -20 °C...80 °C
Tightening torque of drive fastening: 50 Nm
Theoretical force at 6 bar: 109 N
Theoretical force at 6 bar, advancing: 109 N
Type of mounting: Alternatively: | With external thread | With locknut
Pneumatic connection: M5
Cover material: POM
Seals material: TPE-U(PU)
Housing material: Brass | Nickel-plated
Piston rod material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 15040. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
