Festo
150423

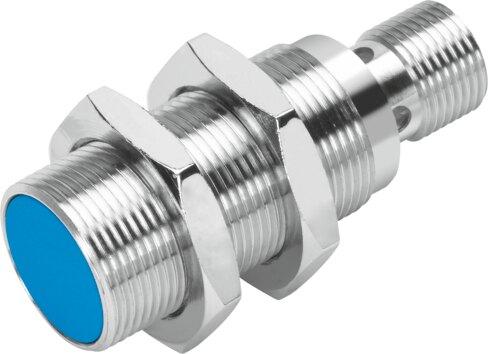

Proximity sensor SIEN-M18B-PO-S-L
The Festo 150423 is an industrial component featuring a rated operating distance of 5 mm, an assured operating distance of 4.05 mm, and a maximum switching frequency of 2000 Hz with a PNP switching output and NC contact element function. It operates within a DC voltage range of 10 V to 30 V, supports a maximum output current of 200 mA, and conforms to EN 60947-5-2 with RCM, c UL us, CE, UKCA, and RoHS compliance. The unit functions across an ambient temperature range of -25 °C to 70 °C and includes pulsed short-circuit protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150423
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150423.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Note on materials
- RoHS compliant
- Rated operating distance
- 5 mm
- Assured operating distance
- 4.05 mm
- Reduction factors
- Aluminum = 0.4 | Stainless steel St 18/8 = 0.8 | Copper = 0.4 | Brass = 0.5 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.25 mm
- Switching output
- PNP
- Switching element function
- NC contact
- Hysteresis
- 0.55 mm
- Max. switching frequency
- 2000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- +/- 20%
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150423. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
