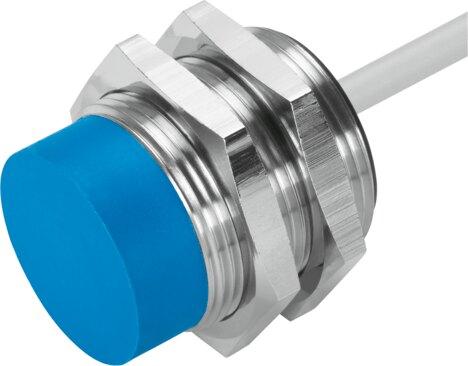

Name: Festo 150442 Proximity sensor SIEN-M30NB-PS-K-L
Brand: Festo

Proximity sensor SIEN-M30NB-PS-K-L

The Festo 150442 industrial component features a rated operating distance of 15 mm, an assured operating distance of 12.15 mm, and conforms to EN 60947-5-2 standards. This PNP N.O. contact unit operates on a DC voltage range of 11 V to 30 V with a maximum switching frequency of 700 Hz, a 200 mA max output current, and pulsed short-circuit protection. It carries c UL us - Listed (OL) and RCM certifications alongside CE and UKCA markings per EU and UK EMC and RoHS regulations. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 150442
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 150442.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
Note on materials: RoHS compliant
Rated operating distance: 15 mm
Assured operating distance: 12.15 mm
Reduction factors: Aluminum = 0.5 | Stainless steel St 18/8 = 0.85 | Copper = 0.43 | Brass = 0.53 | Steel St 37 = 1.0
Ambient temperature: -25 °C...70 °C
Repetition accuracy: 0.75 mm
Switching output: PNP
Switching element function: N.O. contact
Hysteresis: 1.65 mm
Max. switching frequency: 700 Hz
Max. output current: 200 mA
Voltage drop: 2 V
Short-circuit protection: Pulsed
DC operating voltage range: 11 V...30 V
Residual ripple: +/- 20%
Idle current: 10 mA
Reverse polarity protection: for all electrical connections
Electrical connection 1, connection type: Cable
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 3
Cable length: 2.5 m
Material of cable sheath: TPE-U(PUR)
