Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

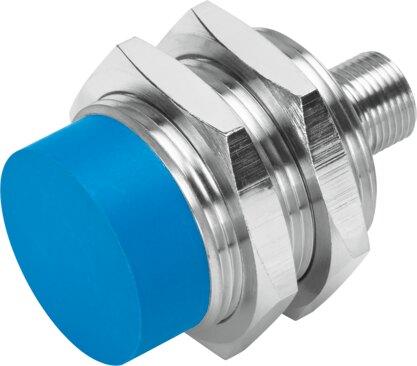

Reference imageConfirm configuration by manufacturer part number.
Festo
150443
Proximity sensor SIEN-M30NB-PS-S-L
The Festo 150443 is an industrial component featuring a rated operating distance of 15 mm, an assured operating distance of 12.15 mm, and a PNP switching output with a normally open contact function. This unit operates within a DC voltage range of 12 V to 30 V, supports a maximum output current of 200 mA at a switching frequency up to 700 Hz, and incorporates pulsed short-circuit protection. It conforms to EN 60947-5-2 with an ambient temperature range of -25 °C to 70 °C, and holds RCM compliance, c UL us listing, CE marking for EMC and RoHS directives, and UKCA compliance for UK-E and UK-R regulations. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150443
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150443.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Note on materials
- RoHS compliant
- Rated operating distance
- 15 mm
- Assured operating distance
- 12.15 mm
- Reduction factors
- Aluminum = 0.5 | Stainless steel St 18/8 = 0.85 | Copper = 0.43 | Brass = 0.53 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.75 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Hysteresis
- 1.65 mm
- Max. switching frequency
- 700 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 12 V...30 V
- Residual ripple
- +/- 20%
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150443. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
