Festo
150452

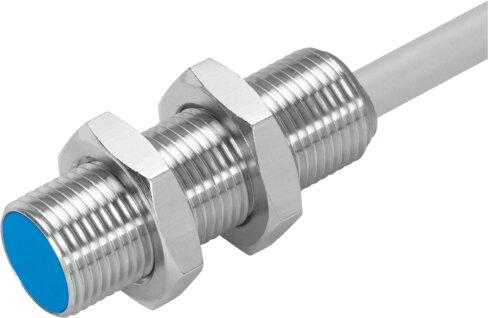

Proximity sensor SIEH-M12B-NO-K-L
The Festo 150452 industrial component features a 4 mm rated operating distance, a 3.24 mm assured operating distance, and an NPN switching output with an NC contact function. Operating on a DC voltage range from 10 V to 30 V, this unit achieves a maximum switching frequency of 2500 Hz, a 200 mA max output current, and incorporates pulsed short-circuit protection alongside an inductive protective circuit. It conforms to EN 60947-5-2 standards, carries C-Tick and c UL us-Listed certifications, and bears CE and UKCA markings per EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150452
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150452.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- C-Tick | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Rated operating distance
- 4 mm
- Assured operating distance
- 3.24 mm
- Reduction factors
- Aluminum = 0.4 | Stainless steel St 18/8 = 0.8 | Copper = 0.4 | Brass = 0.5 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy under constant conditions
- 0.2 mm
- Switching output
- NPN
- Switching element function
- NC contact
- Hysteresis
- 0.36 mm
- Max. switching frequency
- 2500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- ±10 %
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
