150456

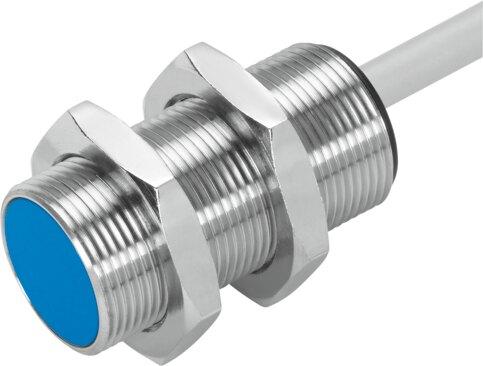

Name: Festo 150456 Proximity sensor SIEH-M18B-NS-K-L
Brand: Festo

Proximity sensor SIEH-M18B-NS-K-L

The Festo 150456 industrial component is an NPN inductive sensor featuring an N.O. contact switching element function, an 8 mm rated operating distance, and a 6.48 mm assured operating distance with a maximum switching frequency of 1500 Hz. It operates within a DC voltage range of 10 V to 30 V, provides pulsed short-circuit protection, and maintains a maximum output current of 200 mA across an ambient temperature range of -25 °C to 70 °C. Certified with RCM compliance and c UL us listing, this RoHS-compliant unit conforms to EN 60947-5-2 while fulfilling EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 150456
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 150456.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
Note on materials: RoHS compliant
Rated operating distance: 8 mm
Assured operating distance: 6.48 mm
Reduction factors: Aluminum = 0.35 | Stainless steel St 18/8 = 0.7 | Copper = 0.3 | Brass = 0.4 | Steel St 37 = 1.0
Ambient temperature: -25 °C...70 °C
Repetition accuracy: 0.4 mm
Switching output: NPN
Switching element function: N.O. contact
Hysteresis: 0.88 mm
Max. switching frequency: 1500 Hz
Max. output current: 200 mA
Voltage drop: 2 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: +/- 20%
Idle current: 10 mA
Reverse polarity protection: for all electrical connections
Electrical connection 1, connection type: Cable
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 3
Cable length: 2.5 m
Material of cable sheath: TPE-U(PUR)
