Festo
150462

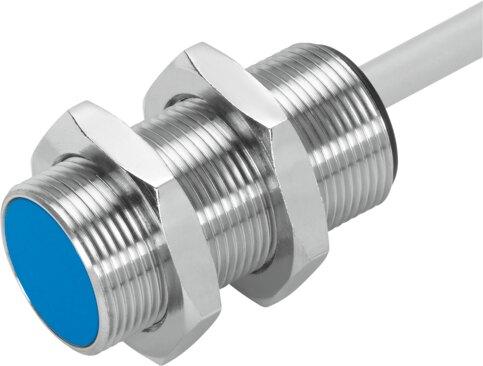

Proximity sensor SIEH-M18B-PO-K-L
The Festo 150462 industrial component is an inductive sensor featuring an 8 mm rated operating distance, 6.48 mm assured operating distance, and a PNP switching output with an NC contact function. It operates within a 10 V to 30 V DC voltage range, supports a maximum switching frequency of 1500 Hz, and conforms to EN 60947-5-2 with RCM and c UL us-Listed certifications. Compliance includes EU and UK directives for EMC and RoHS, alongside an ambient temperature range of -25 °C to 70 °C and pulsed short-circuit protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150462
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150462.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Note on materials
- RoHS compliant
- Rated operating distance
- 8 mm
- Assured operating distance
- 6.48 mm
- Reduction factors
- Aluminum = 0.35 | Stainless steel St 18/8 = 0.7 | Copper = 0.3 | Brass = 0.4 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.4 mm
- Switching output
- PNP
- Switching element function
- NC contact
- Hysteresis
- 0.88 mm
- Max. switching frequency
- 1500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- +/- 20%
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
