Reference imageConfirm configuration by manufacturer part number.
Festo
150491

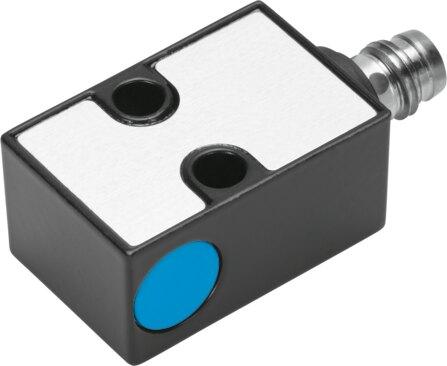

Proximity sensor SIES-V3B-PS-S-L
The Festo part number 150491 is an industrial component featuring a rated operating distance of 2 mm, an assured operating distance of 1.6 mm, and a repetition accuracy of 0.1 mm with reduction factors of Aluminum = 0.45, Stainless steel St 18/8 = 0.7, Copper = 0.3, Brass = 0.5, and Steel St 37 = 1.0. Operating within a DC voltage range of 10 V to 30 V, this unit includes a PNP switching output with an N.O. contact, a maximum switching frequency of 1200 Hz, short-circuit protection, and reverse polarity protection for all electrical connections. It complies with EN 60947-5-2 standards, carries RCM and c UL us - Listed (OL) certifications, and features CE and UKCA markings as per EU and UK EMC and RoHS directives for an ambient temperature range of -25 °C to 85 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150491
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150491.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Rated operating distance
- 2 mm
- Assured operating distance
- 1.6 mm
- Reduction factors
- Aluminum = 0.45 | Stainless steel St 18/8 = 0.7 | Copper = 0.3 | Brass = 0.5 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...85 °C
- Repetition accuracy
- 0.1 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency
- 1200 Hz
- Max. switching frequency DC
- 1200 Hz
- Max. output current as a function of temperature
- 200 mA at <= 50 °C | 150 mA at <= 85 °C
- Voltage drop
- 3.2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 30 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150491. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
