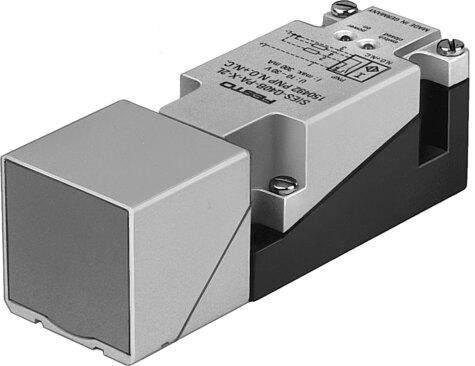

Reference imageConfirm configuration by manufacturer part number.
Festo
150492
Proximity sensor SIES-Q40B-PA-X-2L
The Festo part number 150492 is an industrial component featuring a rated operating distance of 15 mm, an assured operating distance of 12.2 mm, and a PNP switching output with an antivalent switching element function. Conforming to standard EN 60947-5-2 and carrying RCM compliance, c UL us - Listed (OL), and CE marking as per the EU EMC directive, this device operates within a DC voltage range of 10 V to 30 V and an ambient temperature range of -25 °C to 85 °C. It provides pulsed short-circuit protection, reverse polarity protection for all electrical connections, a maximum switching frequency of 100 Hz, and a maximum output current of 200 mA at <= 50 °C or 150 mA at <= 85 °C through a screw terminal electrical connection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150492
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150492.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Rated operating distance
- 15 mm
- Assured operating distance
- 12.2 mm
- Reduction factors
- Aluminum = 0.3 | Stainless steel St 18/8 = 0.7 | Copper = 0.25 | Brass = 0.3 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...85 °C
- Repetition accuracy
- 0.75 mm
- Switching output
- PNP
- Switching element function
- Antivalent
- Max. switching frequency
- 100 Hz
- Max. switching frequency DC
- 100 Hz
- Max. output current as a function of temperature
- 200 mA at <= 50 °C | 150 mA at <= 85 °C
- Voltage drop
- 3.5 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 40 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- Screw terminal
- Material of plug housing
- PA | PBT
- Cable tting
- M20x1.5
- Approved cable diameter
- 7.5 mm...12.5 mm
- Size
- 40x40x120 mm
- Type of mounting
- With through-hole
- Mounting type
- Flush
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150492. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
