Festo
150685

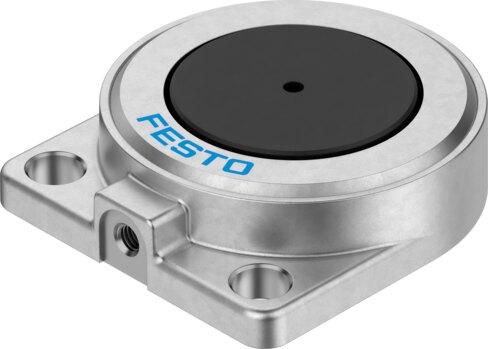

Clamping module EV-32-5
The Festo 150685 is a single-acting industrial component featuring a 5 mm stroke and a Ø 32 clamping area within a die-cast aluminum housing. This unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] at an operating pressure of 0.6 MPa, 6 bar, or 87 psi, utilizing a TPE-U(PU) diaphragm and an M3 pneumatic connection. Weighing 34 g with VDMA24364-B1/B2-L LABS conformity, it supports any mounting position via a through-hole for ambient temperatures from -10 °C to 40 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150685
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150685.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Clamping area
- Ø 32
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...40 °C
- Product weight
- 34 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Housing material
- Die-cast aluminum
- Diaphragm material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150685. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
