150847

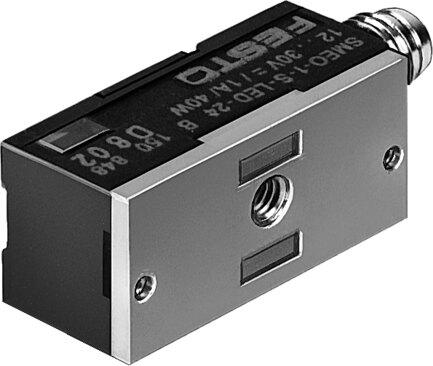

Name: Festo 150847 Proximity sensor SMEO-1-S-24-B
Brand: Festo

Proximity sensor SMEO-1-S-24-B

The Festo 150847 is a block-design industrial component utilizing a magnetic reed measuring principle to monitor position within an ambient temperature range of -20 °C to 70 °C. This RoHS-compliant part features a contact-based, bipolar N.O. contact switching output with a repetition accuracy of 0.2 mm, a maximum switching frequency of 500 Hz, a 0.5 ms on time, and a plug electrical connection operating across a DC voltage range of 0 V to 30 V. It carries CE marking as per the EU EMC and RoHS directives, UKCA marking to UK instructions for EMC and RoHS, and supports a maximum output current of 1 A with maximum switching capacities of 27 VA AC and 27 W DC without short-circuit, overload, or reverse polarity protection. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 150847
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 150847.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Block design
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Position
Measuring principle: Magnetic reed
Ambient temperature: -20 °C...70 °C
Repetition accuracy: 0.2 mm
Switching output: Contact-based, bipolar
Switching element function: N.O. contact
On time: 0.5 ms
Max. switching frequency: 500 Hz
Max. output current: 1 A
Min. switching capacity AC: 27 VA
Max. switching capacity DC: 27 W
Short-circuit protection: No
Overload protection: Not available
DC operating voltage range: 0 V...30 V
Reverse polarity protection: No
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
Connection outlet orientation: Longitudinal
Type of mounting: With accessories
Mounting position: Any
Product weight: 20 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 150847. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
