Festo
150848

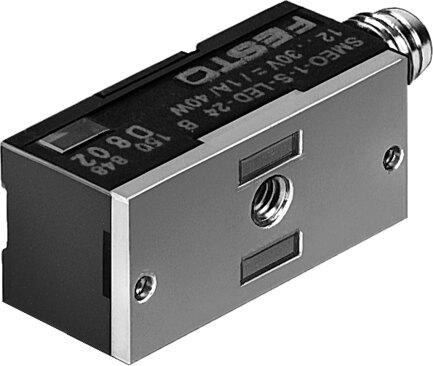

Proximity sensor SMEO-1-S-LED-24-B
The Festo 150848 is a magnetic reed position sensor featuring a block design with contact-based, bipolar switching output and an N.O. contact switching element function. Operating within a 12 V to 27 V AC and DC voltage range, this component delivers a repetition accuracy of 0.2 mm, a 0.5 ms on time, and a maximum output current of 1 A for both 27 VA AC and 27 W DC switching capacities. It functions within an ambient temperature range of -20 °C to 70 °C and carries RCM, CE, and UKCA compliance marks with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contact-based, bipolar
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Max. output current
- 1 A
- Min. switching capacity AC
- 27 VA
- Max. switching capacity DC
- 27 W
- Short-circuit protection
- No
- Overload protection
- Not available
- Operating voltage range AC
- 12 V...27 V
- DC operating voltage range
- 12 V...27 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Connection outlet orientation
- Longitudinal
- Type of mounting
- With accessories
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150848. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
