Festo
150850

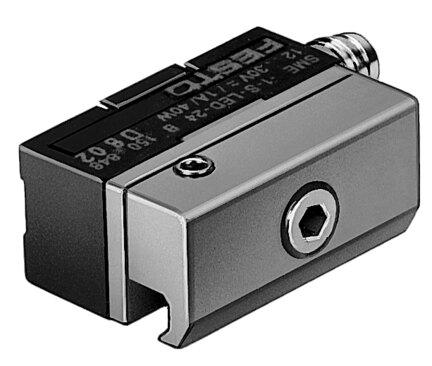

Proximity sensor SME-1-S-24-B
The Festo part number 150850 is a block design industrial component utilizing a magnetic reed measuring principle for position detection with a repetition accuracy of 0.2 mm. This contact-based, bipolar switching output features a normally open contact function, a maximum switching frequency of 500 Hz, an on time of 0.5 ms, and a maximum output current of 1 A within a DC operating voltage range of 0 V to 30 V. Operating within an ambient temperature range of -20 °C to 70 °C, the unit includes a plug electrical connection and complies with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contact-based, bipolar
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Max. switching frequency
- 500 Hz
- Max. output current
- 1 A
- Min. switching capacity AC
- 27 VA
- Max. switching capacity DC
- 27 W
- Short-circuit protection
- No
- Overload protection
- Not available
- DC operating voltage range
- 0 V...30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Connection outlet orientation
- Longitudinal
- Type of mounting
- With accessories
- Mounting position
- Any
- Product weight
- 45 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150850. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
