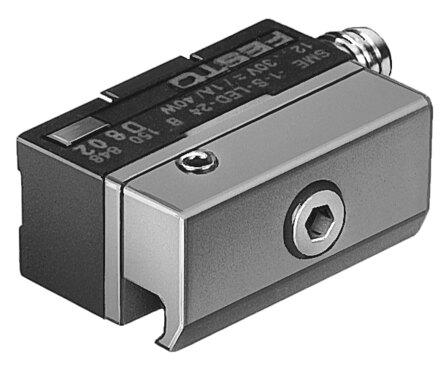

Reference imageConfirm configuration by manufacturer part number.
Festo
150851
Proximity sensor SME-1-S-LED-24-B
Manufactured in a block design with a magnetic reed measuring principle, this Festo industrial component detects position across an ambient temperature range of -20 °C to 70 °C with a repetition accuracy of 0.2 mm. The unit features a contact-based, bipolar N.O. contact switching output operating at 12 V to 27 V AC and DC with a max output current of 1 A and max switching capacity of 27 VA AC / 27 W DC. It carries RCM compliance, CE marking per EU EMC and RoHS directives, and UKCA marking per UK instructions for EMC and RoHS, while utilizing RoHS-compliant materials without short-circuit, overload, or reverse polarity protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150851
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150851.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contact-based, bipolar
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Max. output current
- 1 A
- Min. switching capacity AC
- 27 VA
- Max. switching capacity DC
- 27 W
- Short-circuit protection
- No
- Overload protection
- Not available
- Operating voltage range AC
- 12 V...27 V
- DC operating voltage range
- 12 V...27 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Connection outlet orientation
- Longitudinal
- Type of mounting
- With accessories
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150851. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
