Festo
150917

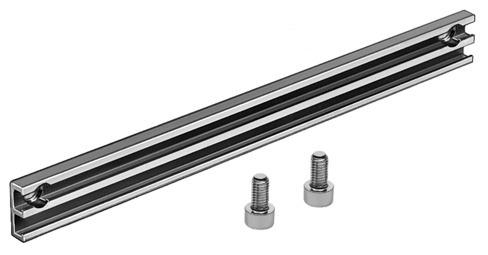

Profile strip SLZS-25- -
The Festo 150917 is a sensor rail featuring a T-slot for proximity switches designed for a piston diameter of 20 mm, with a maximum profile length of 2800 mm. Constructed from an anodized wrought aluminum alloy profile with high-alloy steel screws, this component offers a moderate corrosion resistance class (CRC) of 2 and VDMA24364-B2-L LABS conformity. It operates within an ambient temperature range of -20 °C to 60 °C, supports any mounting position, and utilizes through-hole and screw mounting while complying with RoHS material standards. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150917
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150917.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- T-slot for proximity switch
- Max. prole length
- 2800 mm
- Mounting position
- Any
- for piston Ø
- Ø20
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Type of mounting
- With through-hole and screw
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Material of screws
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 150917. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
