Festo
150919

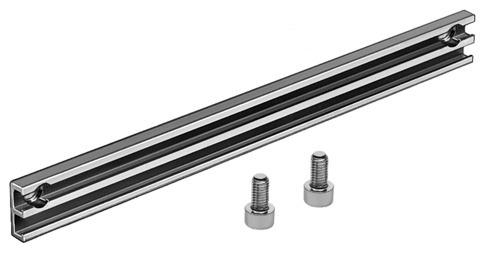

Profile strip SLZS-40- -
The Festo 150919 is a sensor rail featuring a T-slot for proximity switches, designed for use with a piston diameter of 40 mm and an adaptable mounting position. Constructed from anodized wrought aluminum alloy with high-alloy steel screws, this component provides a moderate corrosion stress resistance class of 2 and operates within an ambient temperature range of -20 °C to 60 °C up to a maximum profile length of 2800 mm. It mounts via through-hole and screw, adheres to VDMA24364-B2-L LABS conformity, and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 150919
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 150919.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- T-slot for proximity switch
- Max. prole length
- 2800 mm
- Mounting position
- Any
- for piston Ø
- Ø40
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Type of mounting
- With through-hole and screw
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Material of screws
- High-alloy steel
