Festo
151025

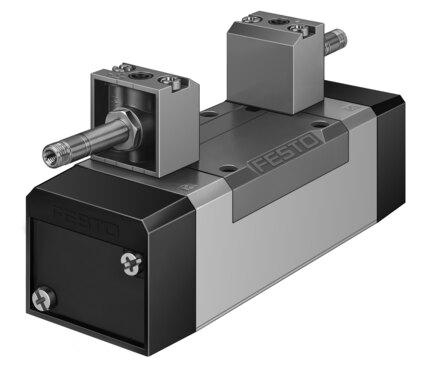

Air solenoid valve MFH-5/3E-D-2-S-C
The Festo 151025 is an electrical 5/3 exhausted piston gate valve featuring a 54 mm width, a nominal width of 11.5 mm, and a normal nominal flow rate of 2300 l/min according to DIN 1343. Built with a soft sealing principle and mechanical spring reset, this ISO 5599-1 compliant component operates within a pressure range of -0.09 MPa to 1.6 MPa and provides IP65 protection. It includes adjustable exhaust air function, sub-base size 2 or G3/8 pneumatic working ports, and both detenting and non-detenting manual override options, while requiring separately ordered solenoid coils for operating voltage. Submit the exact part number, quantity, and application requirements to request a formal quote for this certified industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151025
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151025.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 269
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
