Festo
151146

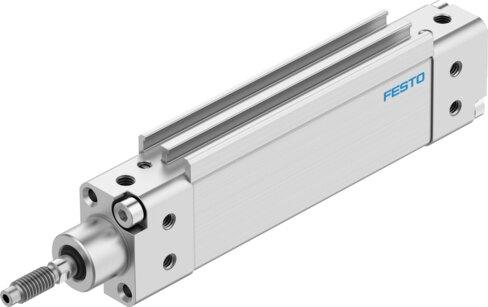

Flat cylinder DZH-16-40-PPV-A
The Festo part number 151146 is a double-acting industrial component featuring a 16 mm equivalent piston diameter, a 40 mm stroke, and an M6 piston rod thread on one end. Built with an oval piston for torsion protection, it operates at pressures from 1 to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends with a 14 mm cushioning length. This unit supports any mounting position, senses position via proximity switch, and delivers a theoretical retracting force of 104 N at 6 bar while withstanding a moderate corrosion stress rating of CRC 2 and an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151146
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151146.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Piston diameter
- 16 mm | Equivalent diameter
- Piston rod thread
- M6
- Max. angle of rotation of the piston rod +/-
- 3.1 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 14 mm
- Max. torque for protection against rotation
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 47 g
- Product weight
- 197 g
- Additional weight per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 148 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151146. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
