Festo
151149

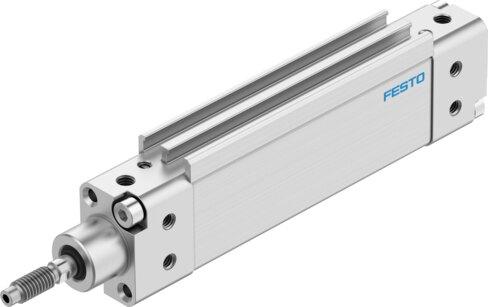

Flat cylinder DZH-16-100-PPV-A
The Festo 151149 is a double-acting industrial component featuring a 16 mm equivalent piston diameter, a 100 mm stroke, and an M6 piston rod thread with an oval piston providing torsion protection up to 0.5 Nm and a maximum rotation angle of plus or minus 3.1 degrees. Designed with an adjustable pneumatic cushioning at both ends over a 14 mm cushioning length and a profile barrel structural design, it operates within a pressure range of 1 bar to 10 bar utilizing compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature span of -20 °C to 80 °C. This unit achieves a theoretical retracting force of 104 N at 6 bar, incorporates position sensing via proximity switch, and exhibits a corrosion resistance class of 2 with VDMA24364-B2-L LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151149
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151149.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 16 mm | Equivalent diameter
- Piston rod thread
- M6
- Max. angle of rotation of the piston rod +/-
- 3.1 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 14 mm
- Max. torque for protection against rotation
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 60 g
- Product weight
- 269 g
- Additional weight per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 148 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151149. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
