Festo
151152

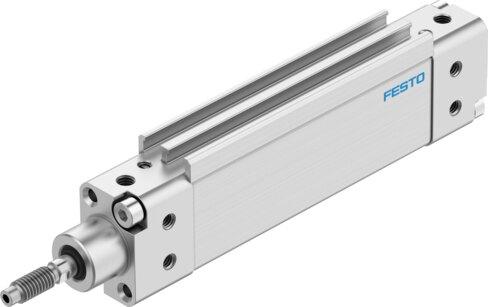

Flat cylinder DZH-16-200-PPV-A
The Festo 151152 is a double-acting industrial component featuring a 16 mm equivalent piston diameter, a 200 mm stroke, and an M6 piston rod thread with an oval piston providing an anti-torsion guide up to 0.5 Nm max torque and a +/- 3.1 deg max angle of rotation. Operating within a pressure range of 1 bar to 10 bar and temperatures from -20 °C to 80 °C, this profile barrel unit utilizes adjustable pneumatic cushioning at both ends over a 14 mm cushioning length and supports position sensing via proximity switch in any mounting position. It achieves a theoretical retracting force of 104 N at 6 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards, while offering CRC 2 moderate corrosion resistance and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151152
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151152.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 200 mm
- Piston diameter
- 16 mm | Equivalent diameter
- Piston rod thread
- M6
- Max. angle of rotation of the piston rod +/-
- 3.1 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 14 mm
- Max. torque for protection against rotation
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 82 g
- Product weight
- 389 g
- Additional weight per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 148 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
