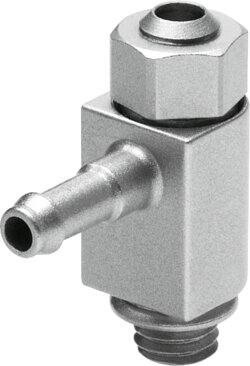

Reference imageConfirm configuration by manufacturer part number.
Festo
151162
One-way flow control valve GRLA-M5-PK-4-B
The Festo 151162 is an industrial component featuring an exhaust air flow control non-return function with a PK-4 pneumatic connection 1 and an M5 pneumatic connection 2. This screw-in unit utilizes a slotted screw adjusting element, operates within a pressure range of 0.2 bar to 10 bar, and handles an ambient and medium temperature of -10 °C to 60 °C with a nominal width of 2 mm. It delivers a standard nominal flow rate of 83 l/min in the flow control direction and 76 l/min to 88 l/min in the non-return direction, while meeting ATEX Zone 1, 2, 21, and 22 explosion prevention requirements. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151162
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151162.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- PK-4
- Pneumatic connection 2
- M5
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 83 l/min
- Standard nominal ow rate in non-return direction
- 76 l/min...88 l/min
- Operating pressure
- 0.2 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Maritime classication
- See certicate
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 140 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 128 l/min...148 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Nominal width
- 2 mm
- Max. tightening torque
- 1.5 Nm
- Product weight
- 10 g
- Material of screwed plug
- Nickel-plated
