Festo
151165

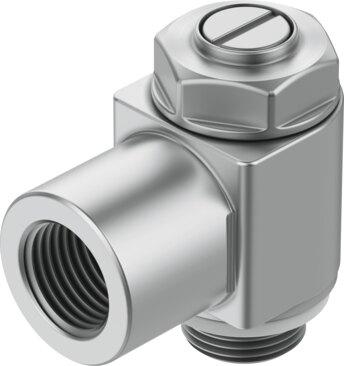

One-way flow control valve GRLA-1/8-B
The Festo 151165 is an industrial component featuring an exhaust air flow control non-return function with G1/8 pneumatic connections on both ports and a slotted screw adjusting element for screw-in mounting. It delivers a standard nominal flow rate of 340 l/min in the flow control direction and 260 l/min to 420 l/min in the non-return direction, operating within a pressure range of 0.3 bar to 10 bar and temperatures from -10 °C to 60 °C. This unit complies with ATEX Zone 1, 2, 21, and 22 explosion protection standards, maintains ISO 14644-1 Class 4 cleanroom suitability, and functions with compressed air per ISO 8573-1:2010 [7:4:4] where oil lubrication is possible. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 340 l/min
- Standard nominal ow rate in non-return direction
- 260 l/min...420 l/min
- Ambient temperature
- -10 °C...60 °C
- Maritime classication
- See certicate
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0.3 bar...10 bar
- Standard ow rate in ow control direction 6 -> 0 bar
- 615 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 470 l/min...760 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 6 Nm
- Product weight
- 28 g
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151165. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
