Festo
151182

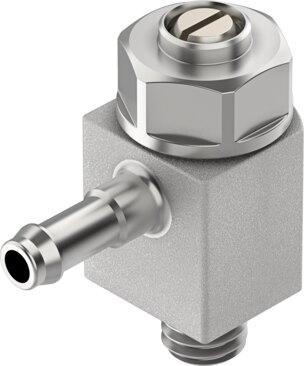

Throttle valve GRLO-M5-PK-3-B
The Festo 151182 is an industrial flow control valve featuring an M5 pneumatic connection and a PK-3 pneumatic connection with a slotted screw adjusting element for screw-in mounting. This component provides a standard nominal flow rate of 83 l/min in the flow control direction, an operating pressure range of 0 bar to 10 bar, and a nominal width of 2 mm across any mounting position. Constructed with nickel-plated brass screwed plug materials, it operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an ambient and medium temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151182
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151182.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- PK-3
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 83 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Nominal width
- 2 mm
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 140 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 1.5 Nm
- Product weight
- 10 g
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of adjusting screw
- Brass
- Swivel joint material
- Die-cast zinc
