151184

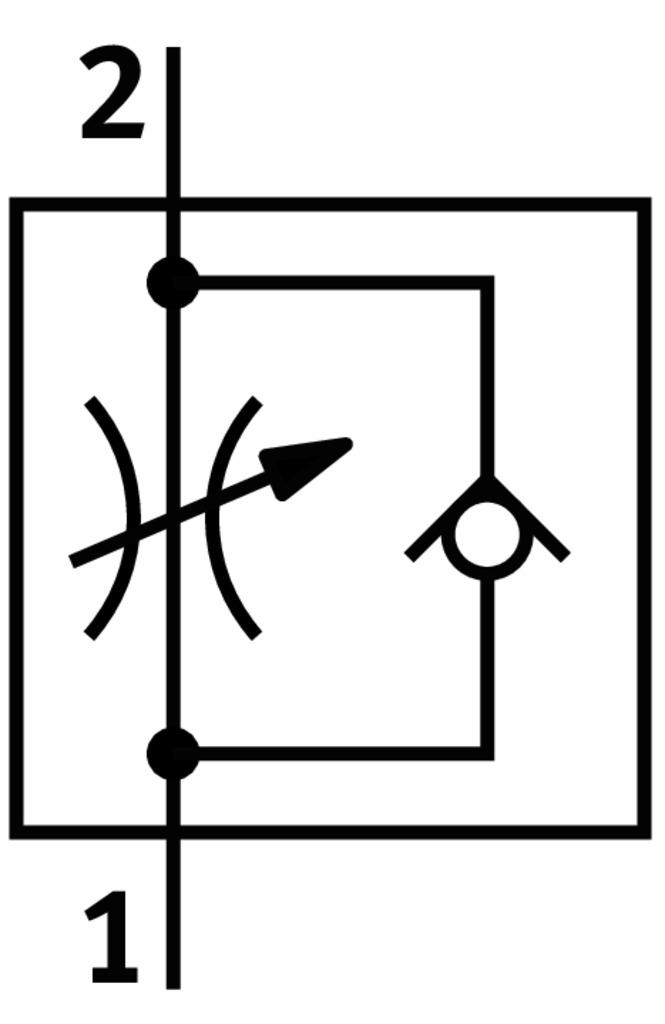

Name: Festo 151184 One-way flow control valve GRLZ-M5-PK-3-B
Brand: Festo

One-way flow control valve GRLZ-M5-PK-3-B

The Festo 151184 is a screw-in industrial component featuring a supply air flow control non-return function, a PK-3 pneumatic connection 1, an M5 pneumatic connection 2, and a slotted screw adjusting element. It operates within a pressure range of 0.2 bar to 10 bar, an ambient and medium temperature range of -10 °C to 60 °C, and provides a standard nominal flow rate of 83 l/min in the flow control direction. This ATEX-certified part supports Zones 1, 2, 21, and 22, accommodates compressed air media per ISO 8573-1:2010 [7:4:4] with optional oil lubrication, and complies with VDMA24364-B1/B2-L LABS conformity and ISO 14644-1 cleanroom class 4. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151184
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151184.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Supply air flow control non-return function
Pneumatic connection 1: PK-3
Pneumatic connection 2: M5
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal flow rate in flow control direction: 83 l/min
Standard nominal flow rate in non-return direction: 72 l/min...83 l/min
Operating pressure: 0.2 bar...10 bar
Ambient temperature: -10 °C...60 °C
Explosion prevention and protection: Observe the information on the certificate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Standard flow rate in flow control direction 6 -> 0 bar: 140 l/min
Standard flow rate in non-return direction at 6 -> 0 bar: 120 l/min...140 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Nominal width: 2 mm
Max. tightening torque: 1.5 Nm
Product weight: 10 g
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS-compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 151184. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
