Name: Festo 151185 One-way flow control valve GRLZ-M5-PK-4-B
Brand: Festo

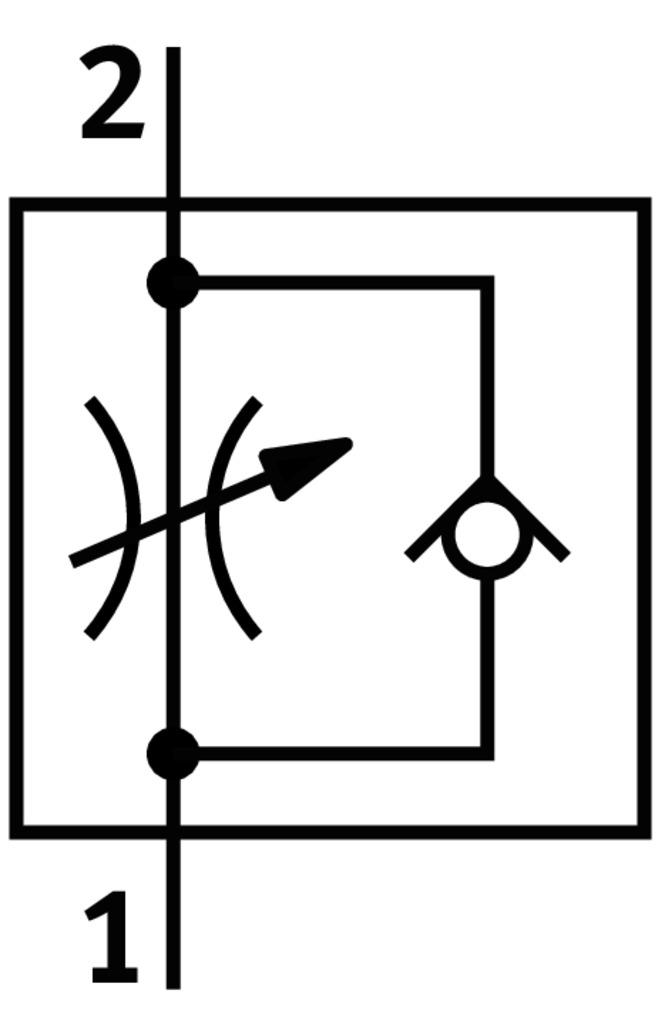

One-way flow control valve GRLZ-M5-PK-4-B

The Festo 151185 is an industrial component featuring a supply air flow control non-return function, a PK-4 pneumatic connection 1, an M5 pneumatic connection 2, and a slotted screw adjusting element for screw-in mounting. This part operates within a pressure range of 0.2 bar to 10 bar, handles an ambient and medium temperature of -10 °C to 60 °C, and provides a standard nominal flow rate of 83 l/min in the flow control direction alongside 76 l/min to 88 l/min in the non-return direction. Designed for compressed air operating media according to ISO 8573-1:2010 [7:4:4], it accommodates oil lubrication, supports any mounting position, and maintains ATEX certification for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151185
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151185.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Supply air flow control non-return function
Pneumatic connection 1: PK-4
Pneumatic connection 2: M5
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal flow rate in flow control direction: 83 l/min
Standard nominal flow rate in non-return direction: 76 l/min...88 l/min
Operating pressure: 0.2 bar...10 bar
Ambient temperature: -10 °C...60 °C
Explosion prevention and protection: Observe the information on the certificate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Standard flow rate in flow control direction 6 -> 0 bar: 140 l/min
Standard flow rate in non-return direction at 6 -> 0 bar: 125 l/min...150 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Nominal width: 2 mm
Max. tightening torque: 1.5 Nm
Product weight: 10 g
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS-compliant
