Name: Festo 151190 One-way flow control valve GRLZ-1/8-PK-4-B
Brand: Festo

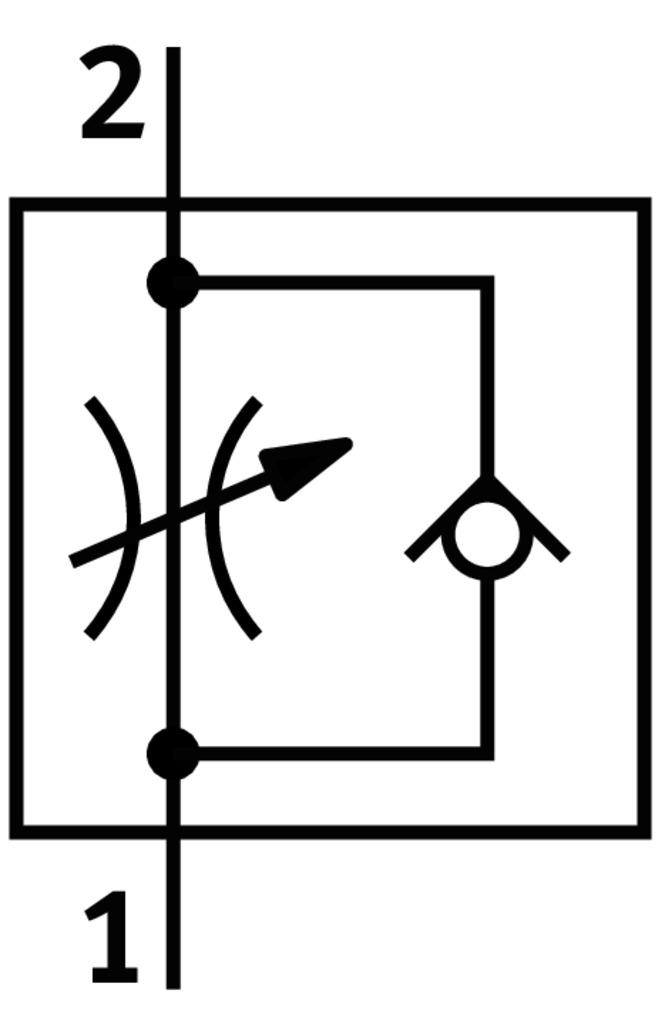

One-way flow control valve GRLZ-1/8-PK-4-B

The Festo part number 151190 is a screw-in industrial component featuring a supply air flow control non-return function, a PK-4 pneumatic connection with union nut, and a G1/8 pneumatic connection. It utilizes a slotted screw adjusting element, accommodates any mounting position, and operates within a pressure range of 0.3 bar to 10 bar across an ambient temperature range of -10 °C to 60 °C. The unit delivers a standard nominal flow rate of 230 l/min in the flow control direction and 190 l/min to 240 l/min in the non-return direction while supporting compressed air media per ISO 8573-1:2010 [7:4:4] with optional oil lubrication. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151190
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151190.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Supply air flow control non-return function
Pneumatic connection 1: PK-4 with union nut
Pneumatic connection 2: G1/8
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal flow rate in flow control direction: 230 l/min
Standard nominal flow rate in non-return direction: 190 l/min...240 l/min
Ambient temperature: -10 °C...60 °C
Explosion prevention and protection: Observe the information on the certificate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Operating pressure for entire temperature range: 0.3 bar...10 bar
Standard flow rate in flow control direction 6 -> 0 bar: 360 l/min
Standard flow rate in non-return direction at 6 -> 0 bar: 295 l/min...375 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Max. tightening torque: 6 Nm
Product weight: 25 g
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS-compliant
Seals material: NBR
