Name: Festo 151191 One-way flow control valve GRLZ-1/8-PK-6-B
Brand: Festo

One-way flow control valve GRLZ-1/8-PK-6-B

The Festo part number 151191 is an industrial component featuring a supply air flow control non-return function, a PK-6 pneumatic connection with union nut, and a G1/8 pneumatic connection. It utilizes a slotted screw adjusting element for screw-in mounting, offering a standard nominal flow rate of 300 l/min in the flow control direction and 210 l/min to 290 l/min in the non-return direction across an operating pressure range of 0.3 bar to 10 bar. Designed for compressed air media according to ISO 8573-1:2010 [7:4:4] with possible oil lubrication, this component supports ATEX explosion protection for zones 1, 2, 21, and 22, and operates within an ambient and medium temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151191
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151191.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

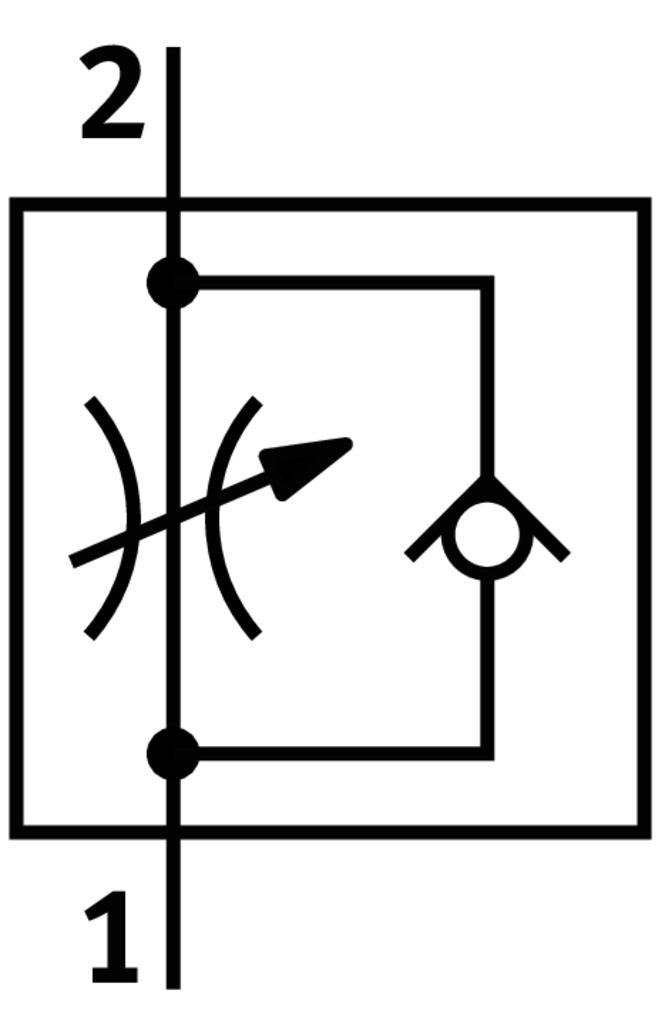

Valve function: Supply air flow control non-return function
Pneumatic connection 1: PK-6 with union nut
Pneumatic connection 2: G1/8
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal flow rate in flow control direction: 300 l/min
Standard nominal flow rate in non-return direction: 210 l/min...290 l/min
Ambient temperature: -10 °C...60 °C
Explosion prevention and protection: Observe the information on the certificate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Operating pressure for entire temperature range: 0.3 bar...10 bar
Standard flow rate in flow control direction 6 -> 0 bar: 455 l/min
Standard flow rate in non-return direction at 6 -> 0 bar: 320 l/min...440 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Max. tightening torque: 6 Nm
Product weight: 26 g
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS-compliant
Seals material: NBR
