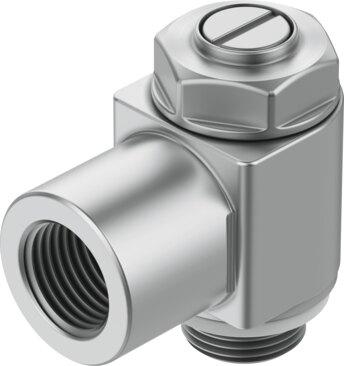

Reference imageConfirm configuration by manufacturer part number.
Festo
151195
One-way flow control valve GRLZ-1/4-B
The Festo 151195 is an industrial component featuring a supply air flow control non-return function with an internal thread G1/4 pneumatic connection 1 and an external thread G1/4 pneumatic connection 2. This screw-in component utilizes a slotted screw adjusting element, operates within an ambient and medium temperature range of -10 °C to 60 °C, and handles an operating pressure of 0.3 bar to 10 bar. It delivers a standard nominal flow rate of 610 l/min in the flow control direction and 450 l/min to 820 l/min in the non-return direction, while offering ATEX explosion protection for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151195
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151195.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Supply air ow control non-return function
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 610 l/min
- Standard nominal ow rate in non-return direction
- 450 l/min...820 l/min
- Ambient temperature
- -10 °C...60 °C
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0.3 bar...10 bar
- Standard ow rate in ow control direction 6 -> 0 bar
- 1200 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 885 l/min...1615 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Nominal width
- 6 mm
- Max. tightening torque
- 11 Nm
- Product weight
- 59 g
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
