Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

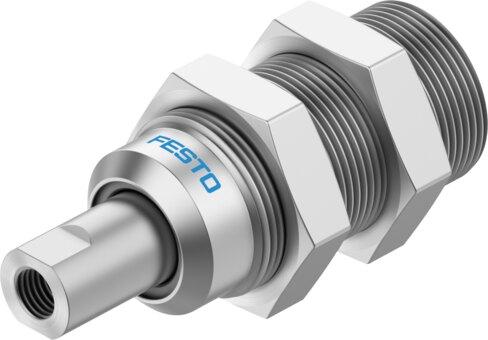

Reference imageConfirm configuration by manufacturer part number.
Festo
151209
Length compensator VAL-M5-5
The Festo part number 151209 is an industrial component featuring a 5 mm suction cup holder height compensator and an M16x1 external thread for mounting. This assembly operates within a pressure range of -0.95 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:-:-], incorporating an M5 vacuum connection at the top and an M5 suction cup mounting. Constructed with an aluminum housing, NBR seals, and a retainer bracket of aluminum, POM, and galvanized steel, the 25 g unit achieves a CRC 2 corrosion resistance class. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 5 mm
- Mounting position
- Any
- Structural design
- Vacuum connection at top
- Operating pressure
- -0.95 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 25 g
- Type of mounting
- With external thread M16x1
- Suction cup mounting
- M5
- Vacuum connection
- M5
- Note on materials
- RoHS-compliant
- Seals material
- NBR
- Housing material
- Aluminum
- Retainer bracket material
- Aluminum | POM | Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151209. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
