Festo
151210

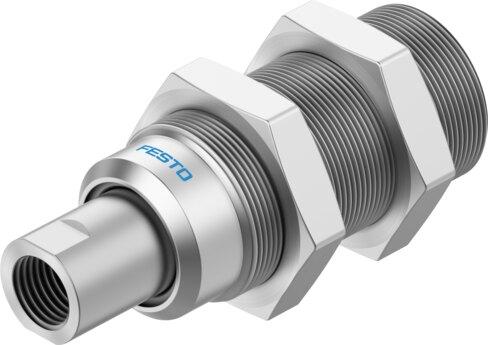

Length compensator VAL-1/8-10
The Festo 151210 is an industrial component featuring a 10 mm suction cup holder height compensator and a structural design with a vacuum connection at the top. Constructed with an aluminum housing, POM and galvanized steel retainer bracket, and NBR seals, it operates within a pressure range of -0.95 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS-compliant unit weighs 62 g, offers a moderate corrosion resistance class (CRC 2) with VDMA24364-B1/B2-L LABS conformity, and mounts via an external M22x1.5 thread with G 1/8 suction cup and vacuum connections in any mounting position under ambient temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151210
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151210.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup holder height compensator
- 10 mm
- Mounting position
- Any
- Structural design
- Vacuum connection at top
- Operating pressure
- -0.95 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 62 g
- Type of mounting
- With external thread M22x1.5
- Suction cup mounting
- G 1/8
- Vacuum connection
- G1/8
- Note on materials
- RoHS-compliant
- Seals material
- NBR
- Housing material
- Aluminum
- Retainer bracket material
- Aluminum | POM | Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
