Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
151217

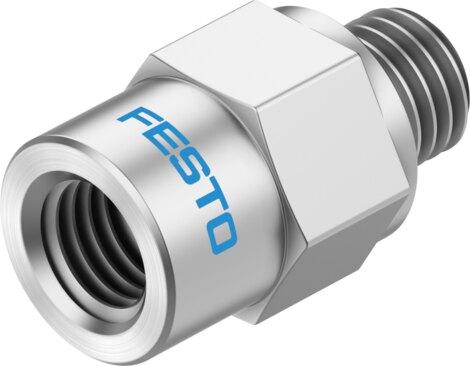

Vacuum security valve ISV-M5
The Festo 151217 is an industrial component featuring an M5 pneumatic connection for both connection 1 and connection 2, designed for screw-in mounting in any position with a product weight of 4 g. Constructed with a high-alloy steel housing and a sintered bronze compressed air filter material, this part operates within a pressure range of -95 kPa to 0 kPa and accommodates an ejector pulse suitability of 8 MPa using compressed air as per ISO 8573-1:2010 [7:-:-]. It delivers a required suction rate of 1 l/min at -0.5 bar, functions within an ambient temperature range of -10 °C to 60 °C, and conforms to VDMA24364-B1/B2-L LABS with a corrosion resistance class of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M5
- Ejector pulse suitability
- 8 MPa | 8 bar
- Mounting position
- Any
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar
- Required suction rate at -0.5 bar
- 1 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 4 g
- Type of mounting
- Screw-in
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M5
- Compressed air lter material
- Sintered bronze
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151217. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
