151547

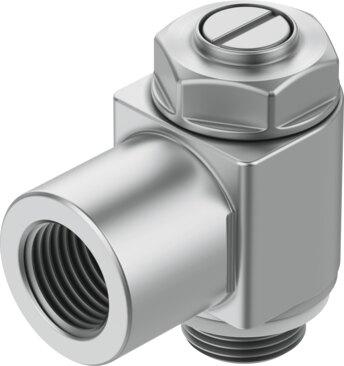

Name: Festo 151547 One-way flow control valve GRLA-1/4-NPT-B
Brand: Festo

One-way flow control valve GRLA-1/4-NPT-B

The Festo part number 151547 is an industrial component featuring an exhaust air flow control non-return function with an internal thread 1/4 NPT pneumatic connection 1 and an external thread 1/4 NPT pneumatic connection 2. It utilizes a slotted screw adjusting element for screw-in mounting, offering a standard nominal flow rate in the flow control direction of 610 l/min and an operating pressure range from 0.3 bar to 10 bar across an ambient temperature of -10 °C to 60 °C. Constructed with a wrought aluminum alloy screwed plug and RoHS compliance, this component operates with ISO 8573-1:2010 [7:4:4] compressed air and supports oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151547
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151547.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: Internal thread 1/4 NPT
Pneumatic connection 2: external thread 1/4 NPT
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 610 l/min
Standard nominal ow rate in non-return direction: 450 l/min...820 l/min
Ambient temperature: -10 °C...60 °C
Mounting position: Any
Operating pressure for entire temperature range: 0.3 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 1200 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Nominal width: 6 mm
Max. tightening torque: 11 Nm
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS compliant
Seals material: NBR
Material of adjusting screw: Brass
Swivel joint material: Die-cast zinc
