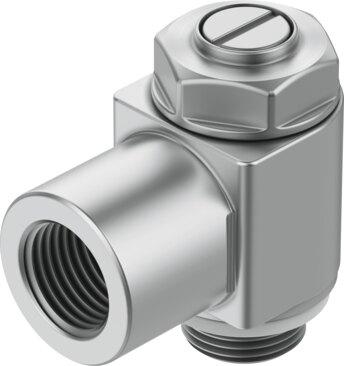

Reference imageConfirm configuration by manufacturer part number.
Festo
151555
One-way flow control valve GRLA-3/8-NPT-B
The Festo 151555 is an industrial component featuring an exhaust air flow control non-return function with 3/8 NPT pneumatic connections for both port 1 and port 2. This screw-in unit utilizes a slotted screw adjusting element, a wrought aluminum alloy hollow bolt and nut, a brass adjusting screw, a die-cast zinc swivel joint, and NBR seals operating within an ambient and medium temperature range of -10 °C to 60 °C. It functions across an operating pressure range of 0.3 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4], supports oil lubrication, and complies with VDMA24364-B2-L LABS conformity, RoHS material requirements, and ISO 14644-1 cleanroom suitability class 4. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151555
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151555.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 2
- 3/8 NPT
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Ambient temperature
- -10 °C...60 °C
- Operating pressure for entire temperature range
- 0.3 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Hollow bolt material
- Wrought aluminum alloy
- Material of adjusting screw
- Brass
- Nut material
- Wrought aluminum alloy
- Swivel joint material
- Die-cast zinc
