Festo
151559

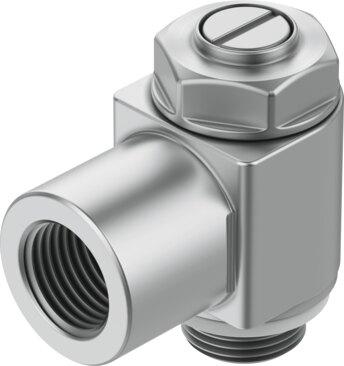

One-way flow control valve GRLA-1/2-NPT-B
This Festo industrial component, part number 151559, features an exhaust air flow control non-return function with 1/2 NPT pneumatic connections on both ports and a slotted screw adjusting element for screw-in mounting. It operates within a pressure range of 0.3 bar to 10 bar and an ambient and medium temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], with oil lubrication permitted. The unit incorporates a wrought aluminum alloy hollow bolt and nut, complies with RoHS materials notes, conforms to VDMA24364-B2-L LABS (PWIS), and meets ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151559
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151559.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 2
- 1/2 NPT
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Operating pressure
- 0.3 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Note on materials
- RoHS compliant
- Hollow bolt material
- Wrought aluminum alloy
- Nut material
- Wrought aluminum alloy
