Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

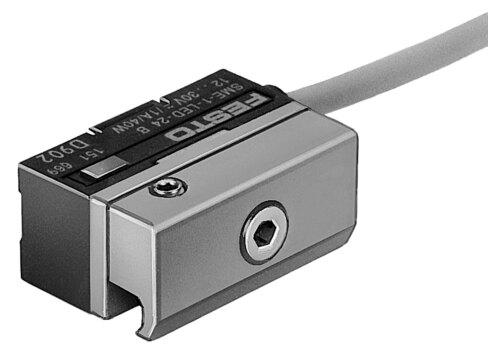

Reference imageConfirm configuration by manufacturer part number.
Festo
151669
Proximity sensor SME-1-LED-24-B
The Festo 151669 is an industrial component featuring a block design and a magnetic reed measuring principle for position sensing across an ambient temperature range of -20 °C to 70 °C. This contact-based, bipolar switching output functions as an N.O. contact with a repetition accuracy of 0.2 mm, a 0.5 ms on time, a maximum switching frequency of 500 Hz, and operating voltage ranges of 12 V to 27 V for both AC and DC. Certified with the RCM compliance mark, RoHS compliance, and CE and UKCA markings as per EU and UK EMC and RoHS directives, the unit handles a maximum output current of 1 A and a maximum switching capacity of 27 VA AC and 27 W DC without short-circuit or overload protection. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151669
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151669.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contact-based, bipolar
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Max. switching frequency
- 500 Hz
- Max. output current
- 1 A
- Min. switching capacity AC
- 27 VA
- Max. switching capacity DC
- 27 W
- Short-circuit protection
- No
- Overload protection
- Not available
- Operating voltage range AC
- 12 V...27 V
- DC operating voltage range
- 12 V...27 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Connection outlet orientation
- Longitudinal
- Cable length
- 2.5 m
- Color cable sheath
- Gray
- Material of cable sheath
- TPE-U(PUR)
- Type of mounting
- With accessories
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151669. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
