Festo
151670

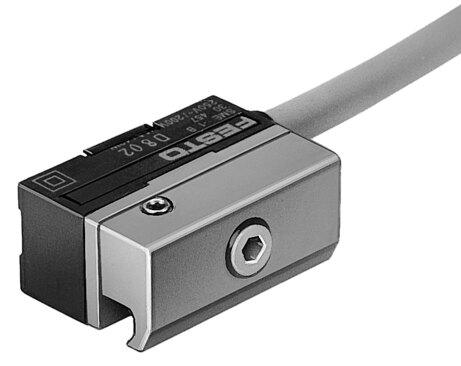

Proximity sensor SME-1-S6-C
The Festo part number 151670 is a block-design industrial component operating on a magnetic reed measuring principle to detect position within an ambient temperature range of -50 °C to 120 °C. Conforming to EN 60947-5-2, this contact-based bipolar unit features an N.O. contact switching output, a repetition accuracy of 0.2 mm, a maximum switching frequency of 500 Hz, and a maximum output current of 1 A with zero voltage drop and zero residual current. It carries CE and UKCA markings as per applicable EU and UK directives for EMC, low voltage, and RoHS compliance, while omitting short-circuit protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151670
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151670.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Conforms to standard
- EN 60947-5-2
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -50 °C...120 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contact-based, bipolar
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Switch-off time
- 0.03 ms
- Max. switching frequency
- 500 Hz
- Max. output current
- 1 A
- Min. switching capacity AC
- 40 VA
- Max. switching capacity DC
- 40 W
- Voltage drop
- 0 V
- Residual current
- 0 mA
- Short-circuit protection
- No
- Overload protection
- Not available
- Operating voltage range AC
- 0 V...250 V
- DC operating voltage range
- 0 V...200 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 2
- Connection outlet orientation
- Longitudinal
