Festo
151686

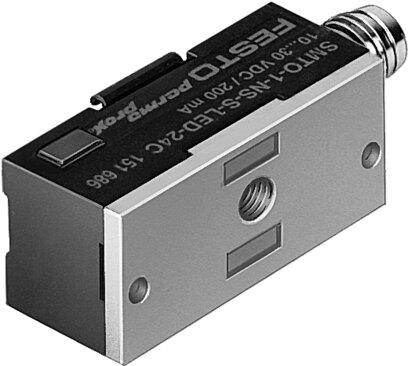

Proximity sensor SMTO-1-NS-S-LED-24-C
The Festo 151686 is a block-design industrial component operating on a magneto-inductive measuring principle to detect position within an ambient temperature range of -25 °C to 70 °C based on the EN 60947-5-2 norm. It features an NPN switching output with an N.O. contact, a repetition accuracy of 0.2 mm, a hysteresis of 0.1 mm to 1.5 mm, a maximum switching frequency of 1 kHz, and an inductive protective circuit adapted to MZ, MY, and ME coils. This RoHS-compliant unit bears the RCM compliance mark alongside CE and UKCA markings corresponding to EU and UK directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151686
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151686.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Hysteresis
- 0.1 mm...1.5 mm
- On time
- 1 ms
- Switch-off time
- 1 ms
- Max. switching frequency
- 1 kHz
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 3 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Residual current
- 0.01 mA
- Short-circuit protection
- Pulsed
- Overload protection
- Available
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151686. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
