Festo
151687
Plug socket MSSD-EB
The Festo 151687 is an industrial component designed for mounting on air solenoid valves via an M2.5 central screw in any mounting position, weighing 11 g. It features a 3-pin rectangular socket electrical connection with an angled cable outlet that rotates through 90°, accommodating a 6 mm to 8 mm cable diameter with an approved diameter of 7.5 mm and a Pg7 cable fitting. Operating within a DC voltage range of 0 V to 300 V and an AC voltage range of 0 V to 250 V, this part provides a 6 A current rating at 40° C, 4 kV surge resistance, and a protective earth connection conforming to DIN EN 175301-803 and DIN EN 61984 standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151687
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151687.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- On air solenoid valve with M2.5 central screw
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 90°
- Mounting position
- Any
- Product weight
- 11 g
- Electrical connection

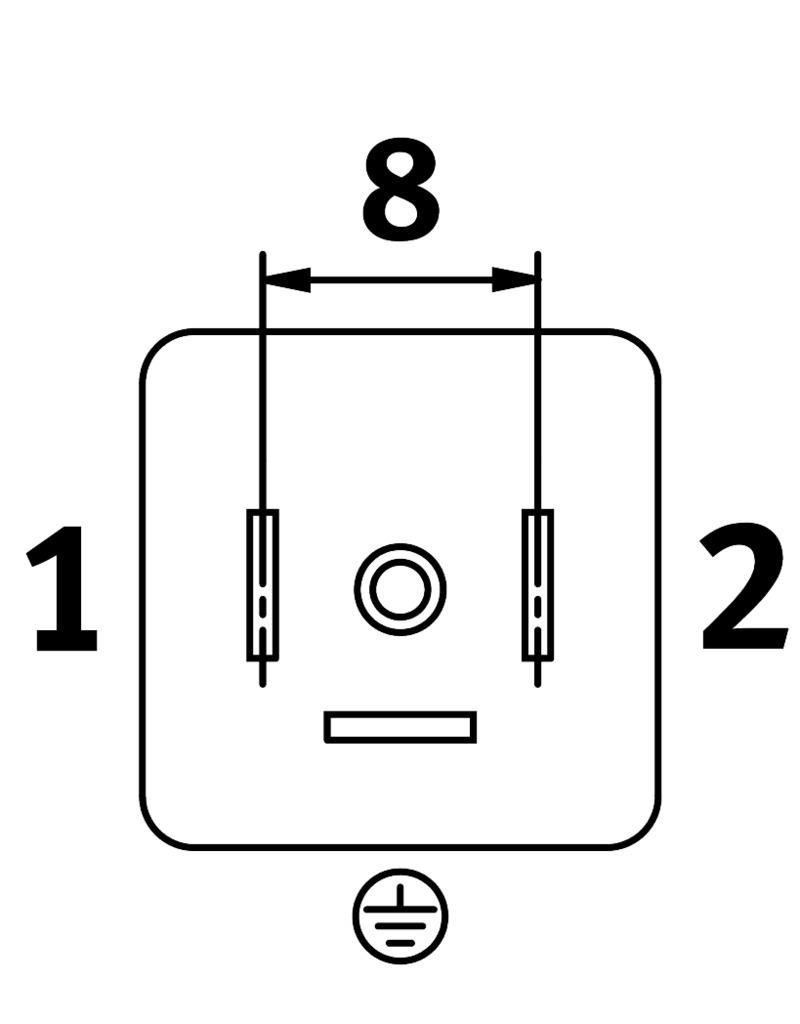

- 3-pin | Socket | Angled socket | Type C | As per DIN EN 175301-803 | As per DIN EN 61984 | Rectangular design MSEB | Rectangular design MSN2
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 2
- Screw terminal
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 6 A
- Current rating
- 6 A
- Surge resistance
- 4 kV
- Protective earth connection
- Available
- Cable tting
- Pg7
- Cable diameter
- 6 mm...8 mm
- Approved cable diameter
- 7.5 mm
- Nominal conductor cross section
- 0.75 mm²
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151687. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
