Festo
151717

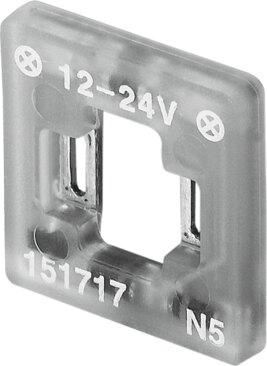

Illuminating seal MEB-LD-12-24DC
The Festo 151717 is an industrial component featuring an LED switching position indication and a transparent TPE-U(PU) housing with a product weight of 0.6 g. This part offers a DC operating voltage range of 12 V to 24 V, a nominal power luminous seal of 0.05 W, an ambient temperature range of -25 °C to 85 °C, and IP65 protection. Designed with a protective earth connection, VDMA24364-B2-L LABS conformity, and Type C electrical connection conforming to DIN EN 175301-803 for rectangular design MSEB, it mounts onto air solenoid valves using an M2.5 central screw. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151717
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151717.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Switching position indication
- LED
- Type of mounting
- On air solenoid valve with M2.5 central screw
- Product weight
- 0.6 g
- Electrical connection
- Type C | As per DIN EN 175301-803 | Rectangular design MSEB
- DC operating voltage range
- 12 V...24 V
- Protective earth connection
- Available
- Nominal power luminous seal
- 0.05 W
- Degree of protection
- IP65
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- TPE-U(PU)
- Color
- Transparent
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151717. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
