Festo
151774

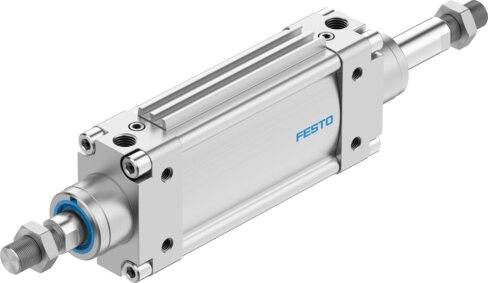

Flat cylinder DZH-50- -PPV-A-S2
The Festo 151774 is a double-acting industrial component featuring a 50 mm equivalent piston diameter, an M16x1.5 piston rod thread, and a variable stroke ranging from 1 mm to 1000 mm. Built with a structural profile barrel, piston, and through piston rod design, it utilizes an oval piston for torsion protection, an adjustable pneumatic cushioning system at both ends, and built-in position sensing via proximity switch. It operates within a pressure range of 0.6 bar to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards, delivering a theoretical retracting force of 989 N at 6 bar across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...1000 mm
- Piston diameter
- 50 mm | Equivalent diameter
- Piston rod thread
- M16x1.5
- Max. angle of rotation of the piston rod +/-
- 0.75 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 23 mm
- Max. torque for protection against rotation
- 1.7 Nm
- Theoretical force at 6 bar, retracting
- 989 N
- Theoretical force at 6 bar, advancing
- 989 N
- Moving mass at 0 mm stroke
- 626 g
- Additional moving mass per 10 mm stroke
- 48.2 g
- Additional weight per 10 mm stroke
- 76.5 g
- Basic weight with 0 mm stroke
- 1474 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151774. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
