Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
151783

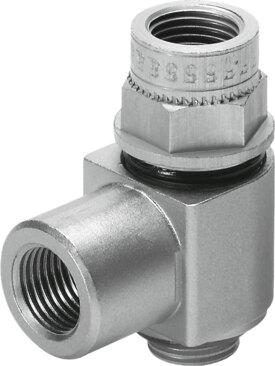

Elbow fitting LJK-M5-I/I
The Festo part number 151783 is an industrial component weighing 20 g with an operating pressure range of -0.95 bar to 8 bar and an ambient temperature range of -10 °C to 60 °C. It features an M5 suction cup mounting, an M5 vacuum connection, and supports any mounting position while utilizing compressed air as the operating medium in accordance with ISO 8573-1:2010 [-:-:-] along with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151783
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151783.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- -0.95 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 20 g
- Suction cup mounting
- M5
- Vacuum connection
- M5
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151783. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
